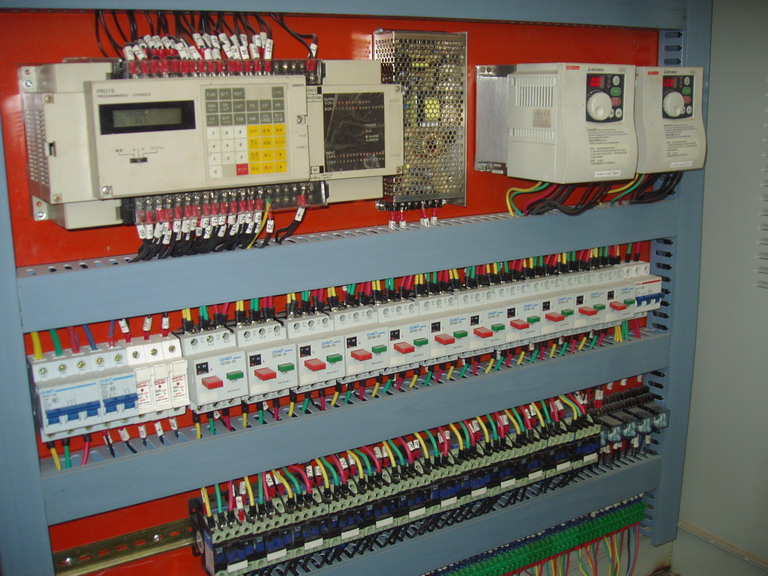

Control System

The control system of the kiln consists of 5 systems: driving system, fan system, temperature control system, oil or gas/oil control system, warning and safety system, power cut switch system and intelligence management supervising system.
    Fan Control System: The fan control systems are divided into two types, manual control and automatic control.

Manual control

The control power source is sent to the field from central control room through manual medium relay.

Automatic Control

It is a sequence starting procedure for automatic control condition. When starting, the smoking drawing fan starts and after delay for some time, the fast cooling fan can start, and delay for another time, the heat drawing fan can start. After starting, the switch on the operation panel or choosing switch for the field fan can be used. The opening degree of the wind gate shall be paid attention to when starting Automatic fan starting. The automatic starting fan system is locked when generating electricity.

Gas System

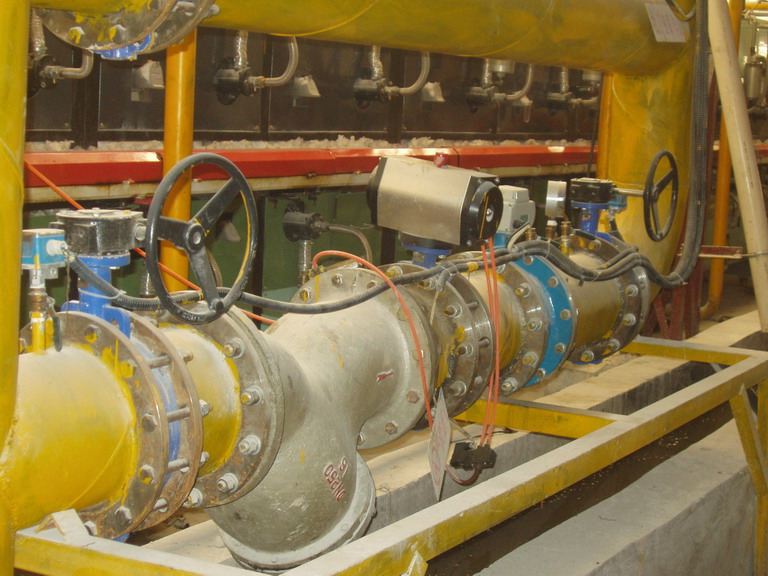

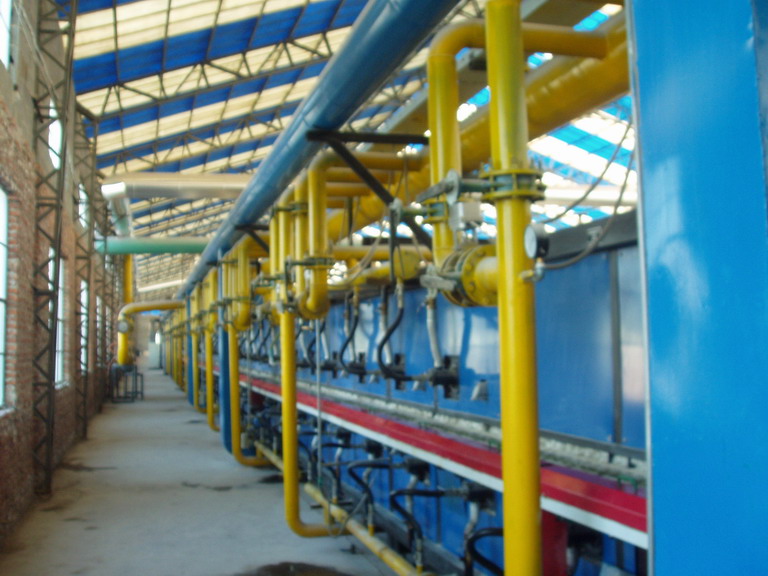

 This picture is the gas system of the gas roller kiln. The calorific value of the artificial occurred furnace gas is low and the flux is large. Water draining pipe and tar draining pipe need to be set and the pipe design shall satisfy the energy consumption requirement of the products sufficiently

Fast Cooling System

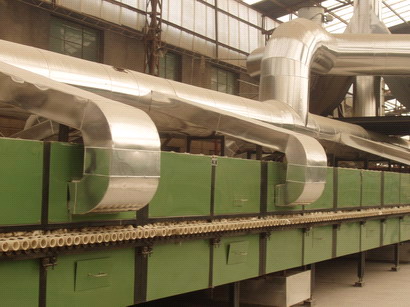

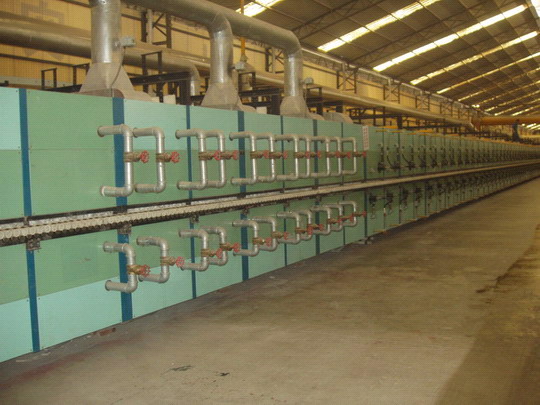

This picture shows the fast cooling system of the kiln; the drawing fan inputs the wind equally into the kiln through refractory steel pipe, adopting frequency conversion to control the temperature of the fast cooling section. The high precision can satisfy the requirement of the technics and adjustment of thermal system.
