Rock crusher
Our rock crusher is professionally designed to take large rocks and reduce them to smaller rocks, gravel, or rock dust. Rock crusher produce aggregates and ready-to-process mining ores , as well as rock fill material for landscaping and erosion control . They can be used with virgin rock or other materials such as reclaimed concrete. The rock crushers can be mobile machines or they can be fixed installations.
Rock crusher - Vibration Feeder
Model |
Max imput rock size |
Capacity |
Motor power |
Installation angle |
Machine weight(excludes motor weight) |
Feeder size |
Overall size
(L × W × H) |
GZD-850 × 3000 |
400 |
~ 120 |
3.7 × 2 |
5 ° |
3607 |
850 × 3000 |
3110 × 1800 × 1600 |
GZD-1000 × 3600 |
500 |
~ 150 |
5.5 × 2 |
5 ° |
3895 |
1000 × 3600 |
3850 × 1950 × 1630 |
GZD-1100 × 4200 |
580 |
~ 240 |
5.5 × 2 |
5 ° |
4170 |
1100 × 4200 |
4400 × 2050 × 1660 |
GZD-1100 × 4900 |
580 |
~ 280 |
7.5 × 2 |
5 ° |
4520 |
4900 × 1100 |
5200 × 2050 × 1700 |
GZD-1300 × 4900 |
650 |
~ 450 |
11 × 2 |
5 ° |
5200 |
4900 × 1300 |
5200 × 2350 × 1750 |
Rock Crusher - First stage crusher
Model |
Impot size(mm) |
Rock feeding size (mm) |
Output size (mm) |
Capacity (m3/h) |
Motor power |
weight |
PE150x250 |
150x250 |
125 |
10-40 |
0.6-3 |
5.5 |
0.58 |
PE200x300 |
200x300 |
180 |
15-50 |
1.2-6 |
7.5 |
1.0 |
PE200x350 |
200x350 |
180 |
18-70 |
1.8-10 |
11 |
1.3 |
PE250x400 |
250x400 |
210 |
20-60 |
3-13 |
15 |
2.8 |
PE400x600 |
400x600 |
340 |
40-100 |
10-34 |
30 |
6.5 |
PE500x750 |
500x750 |
425 |
50-100 |
20-52 |
55 |
11.7 |
PE600x900 |
600x900 |
500 |
65-160 |
30-75 |
55-75 |
17.625 |
PE750x1060 |
750x1060 |
630 |
80-140 |
72-130 |
110 |
28 |
PE900x1200 |
900x1200 |
750 |
95-165 |
87-164 |
155 |
50 |
PEX150x750 |
150x750 |
120 |
18-48 |
5-16 |
15 |
3.5 |
PEX250x750 |
250x750 |
210 |
25-60 |
8-22 |
22 |
4.9 |
PEX250x1000 |
250x1000 |
210 |
25-60 |
10-32 |
30-37 |
6.5 |
PEX250x1200 |
250x1200 |
210 |
25-60 |
13-38 |
37 |
7.7 |

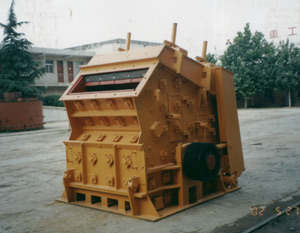

Rock crusher - Second stage crusher
Model |
specification |
Imput size
(mm) |
Max imput rock
(mm) |
capacity
(t/h) |
Ration power(Kw) |
PF-0607 |
? 644 × 740 |
320 × 770 |
100 |
5-15 |
30 |
PF-0807 |
? 850 × 700 |
400 × 730 |
300 |
10-25 |
45 |
PF-H-1007 ? |
? 1000 × 700 |
400 × 730 |
300 |
25-45 |
55-75 |
PF-A-1010 ? |
? 1000 × 1050 |
400 × 1080 |
350 |
40-60 |
75-95 |
PF-B-1210 ? |
? 1250 × 1050 |
400 × 1080 |
350 |
50-100 |
110-160 |
PF-B-1214 ? |
? 1250 × 1400 |
400 × 1430 |
350 |
90-150 |
132-180 |
PF-1013 |
? 1000 × 1300 |
650 × 1350 |
400 |
80-120 |
110 |
PF-1315 |
? 1320 × 1500 |
860 × 1520 |
500 |
160-600 |
250 |
PF-1320 |
? 1320 × 2000 |
860 × 2030 |
500 |
250-300 |
375 |

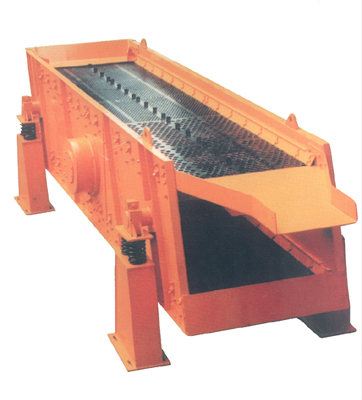

Rock crusher - Vibration screen
|
