PU sandwich panel production line

This PU Sandwich panel production line is an automatic production line. In the PU sandwich panel producing procedure, the product line can continuously produce sandwich panel with PU as its core material. The liquid state raw materials were continuously injected into the middle of two formed panels and reacting?foaming?solidifying in the double-pedrail machine, furthermore, the PU sandwich panel could be cut out automatically according to the required length for users.

The whole production line is consisting of decoiler, coating, cutting equipment, roll forming system, preheating , foaming, solidification and stacking.

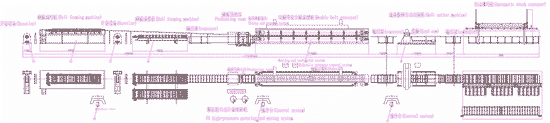

PU sandwich panel production line layout

Click to see larger size

PU sandwich panel production line

Products sample:

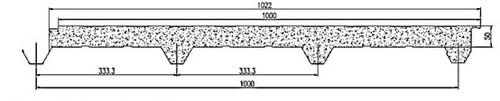

Roof panel:

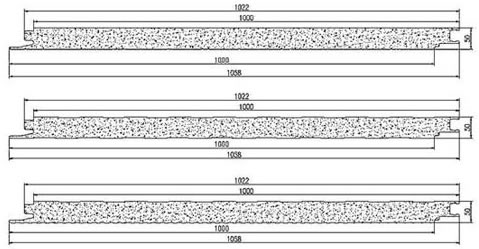

Wall panel:

PU sandwich panel production line equipment list

Active Uncoiler

Steel panel transverse cutting machine?steel panel surface PVC film covering device

Roll forming machine

Conveyer

Pre-heating room

PU two component Liquid mixing and injecting section for foaming

Foaming and the maturing double belt machine, including Hydraulic pressure control system and side nylon seal blocks to make one kind of wall panel and one kind of roof panel

Heating and heat insulation system

Panel automatically cutting system

Conveyer and automatic stack machine

Electric control system

1 2 3 Next page
